ASM Failure Analysis Project
Eisenman Camp 2024 - Material Science Investigation
Project Overview
The Challenge
At Eisenman Camp 2024, our team was presented with a real-world engineering failure: a tire fell off a garbage truck while driving, and all the studs holding the tire broke. The tire with the other half of the studs was stolen, leaving us with critical evidence to analyze.
We were given 3 broken studs, 3 slices of the fracture points, an exemplar stud, and samples of different grades of steel to conduct a comprehensive failure analysis.
Photo Gallery

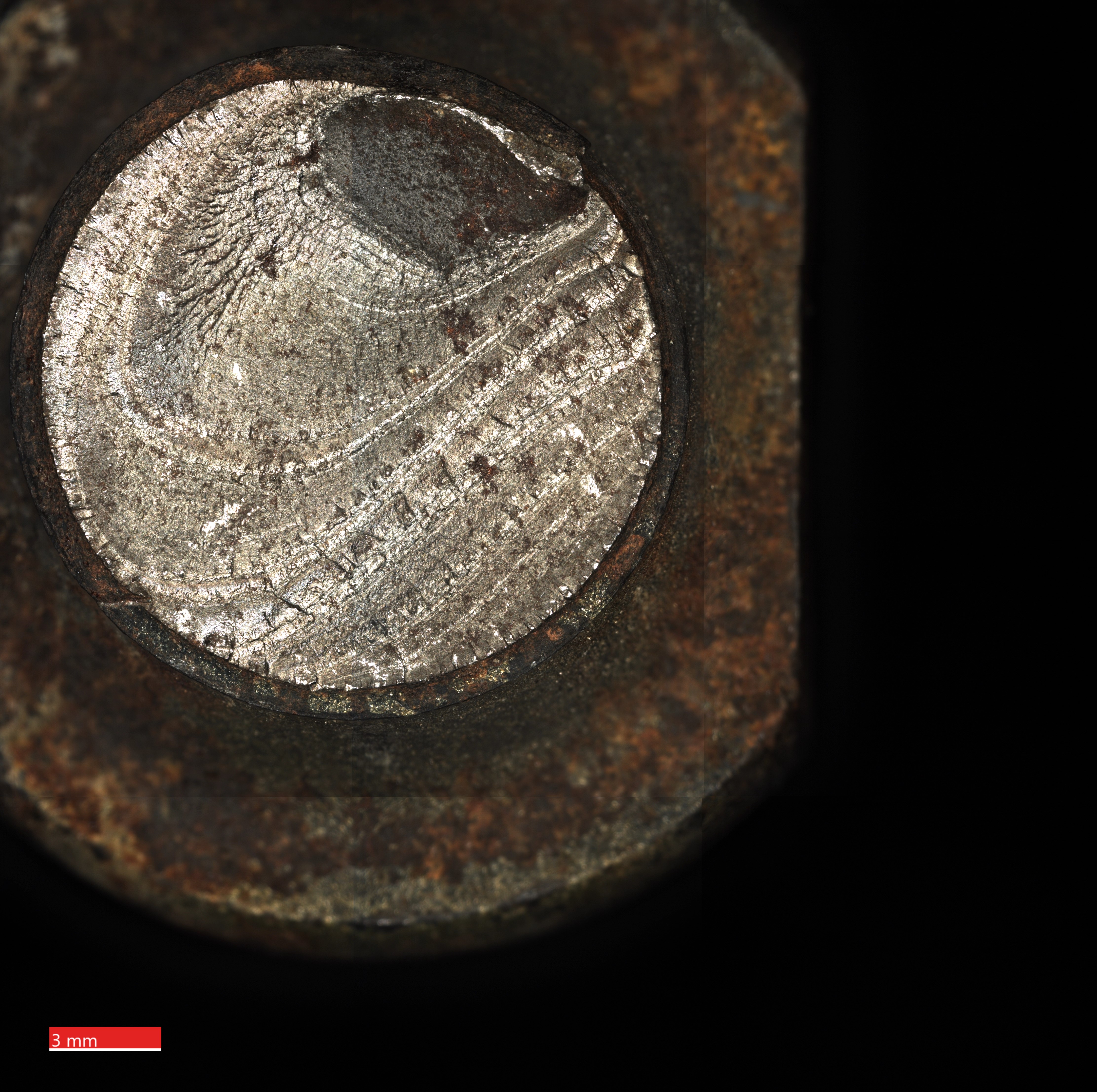

Fracture Surface 1
Initial fracture analysis showing granular metallic surface

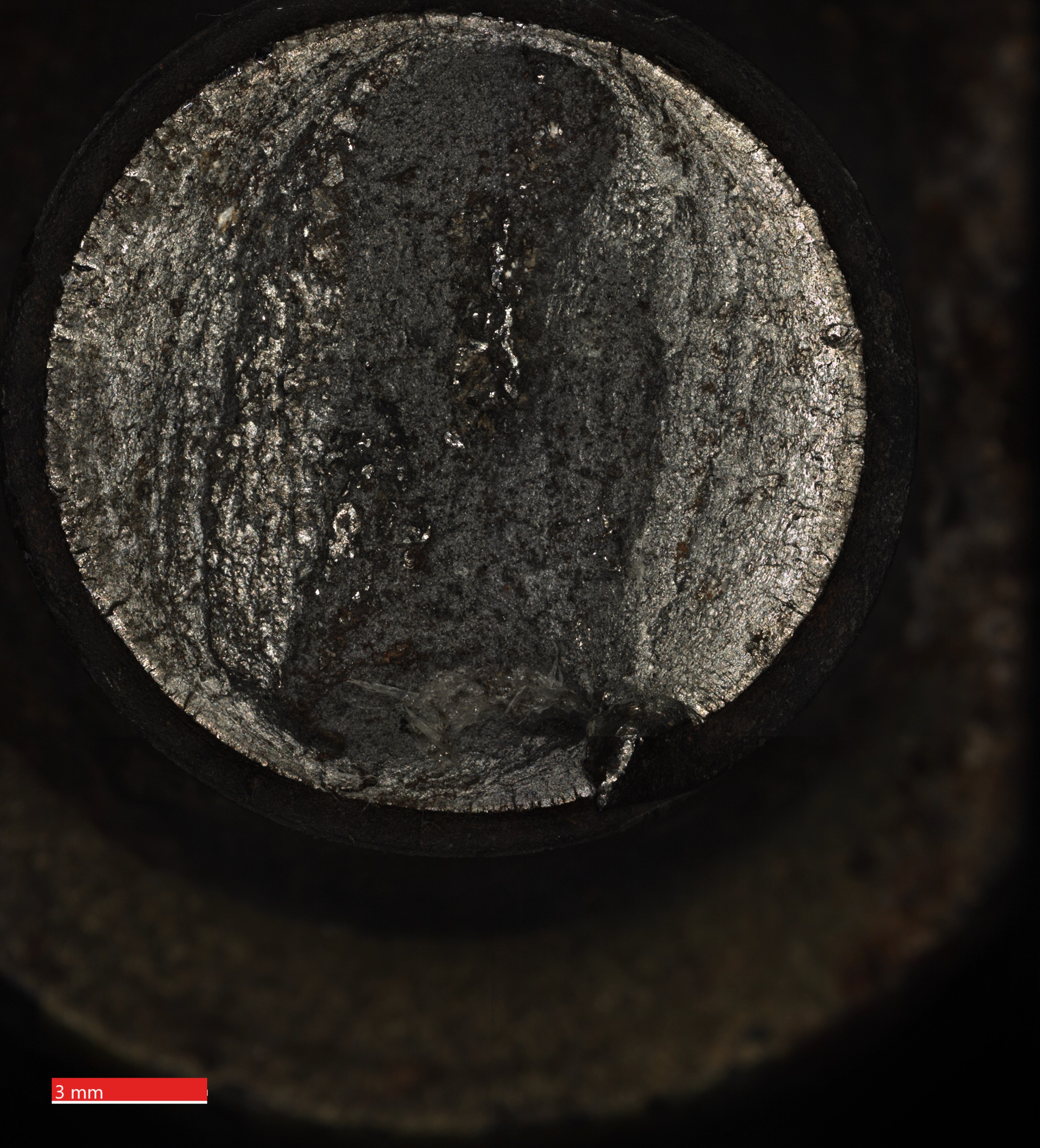

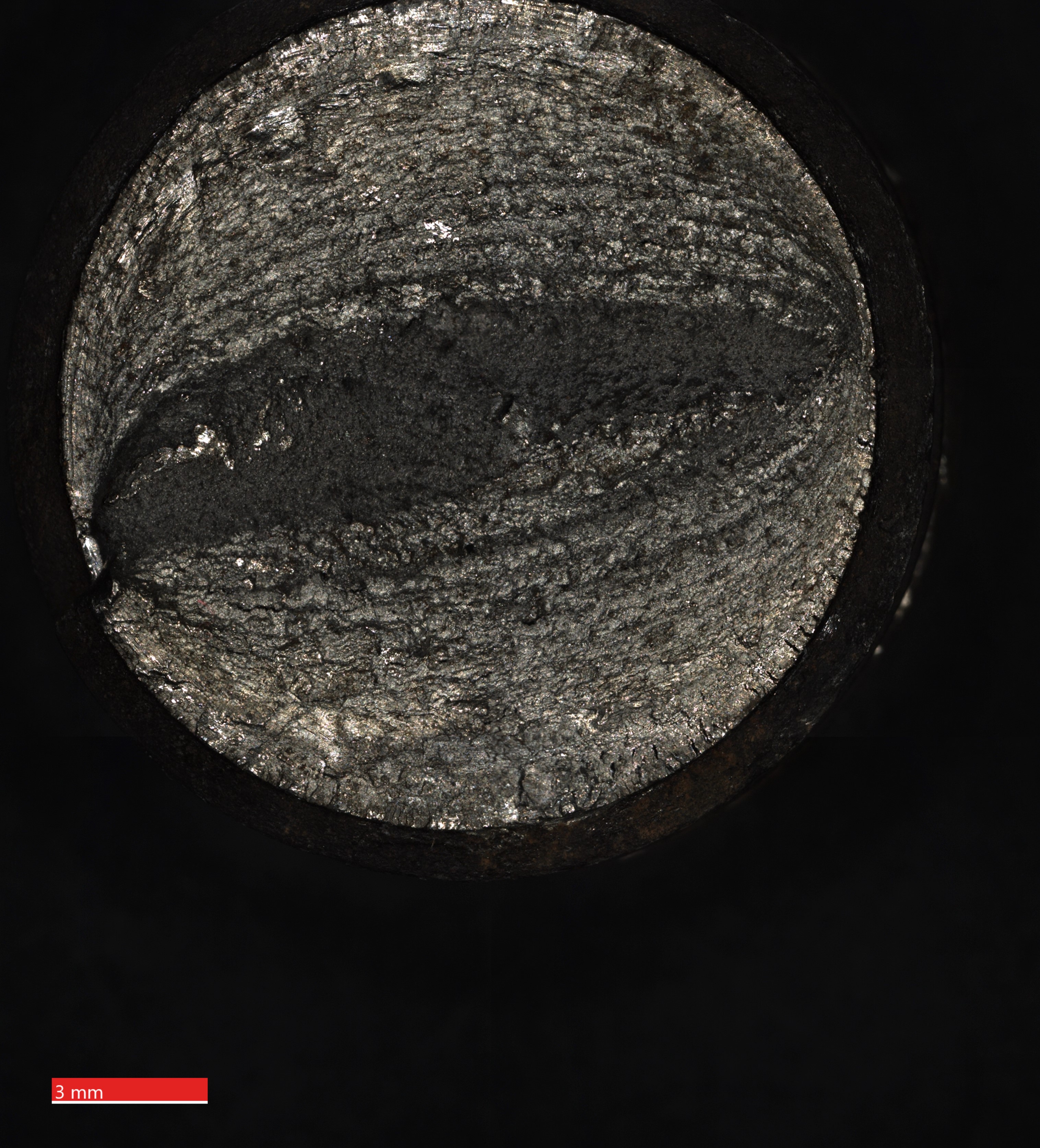

Fracture Surface 2
Linear striation patterns in fracture surface
Fracture Surface 3
Central fracture area with rust discoloration
Fracture Surface 4
Complex fracture pattern with varying textures

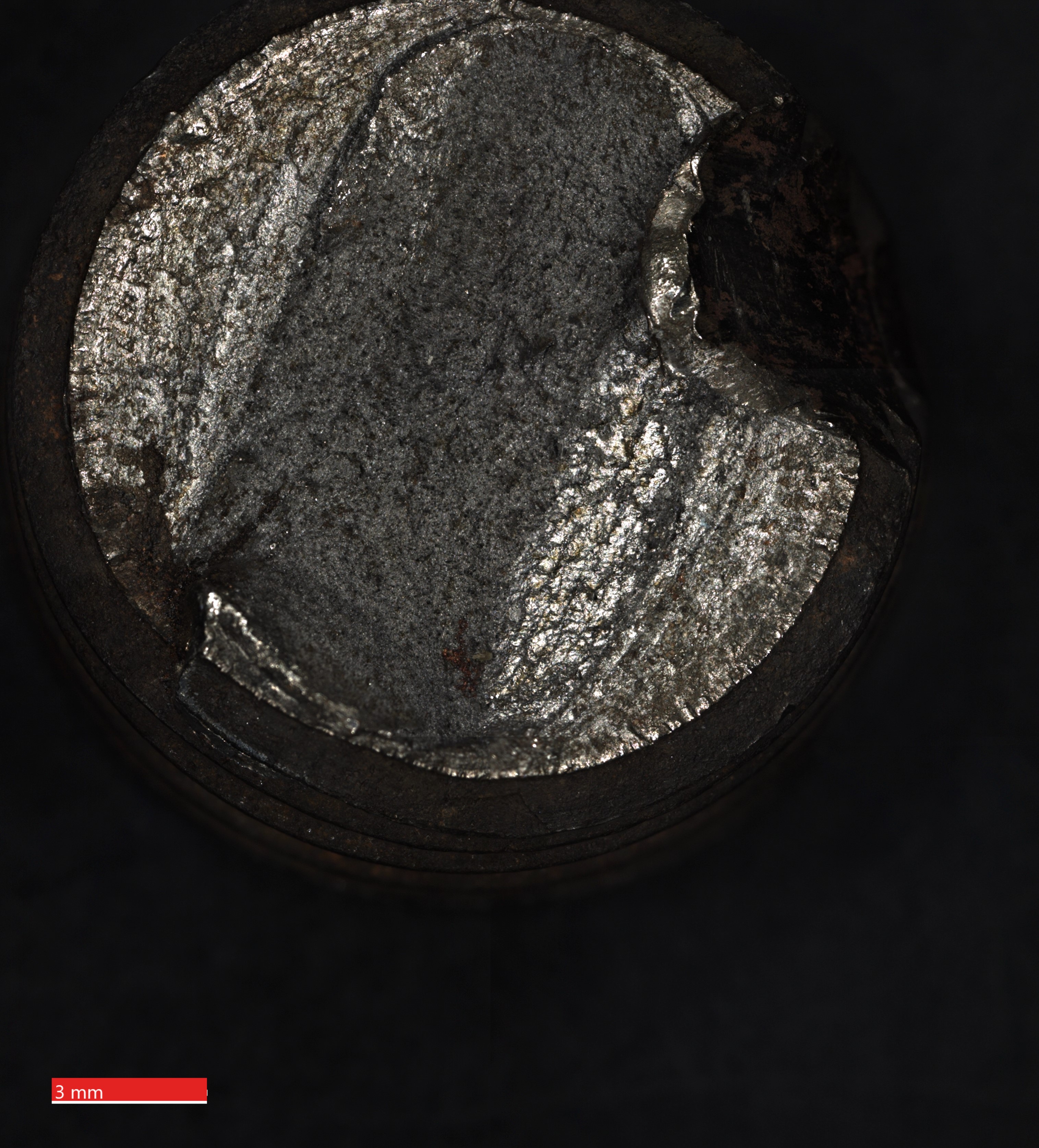

Fracture Surface 5
Jagged break pattern with reflective surfaces

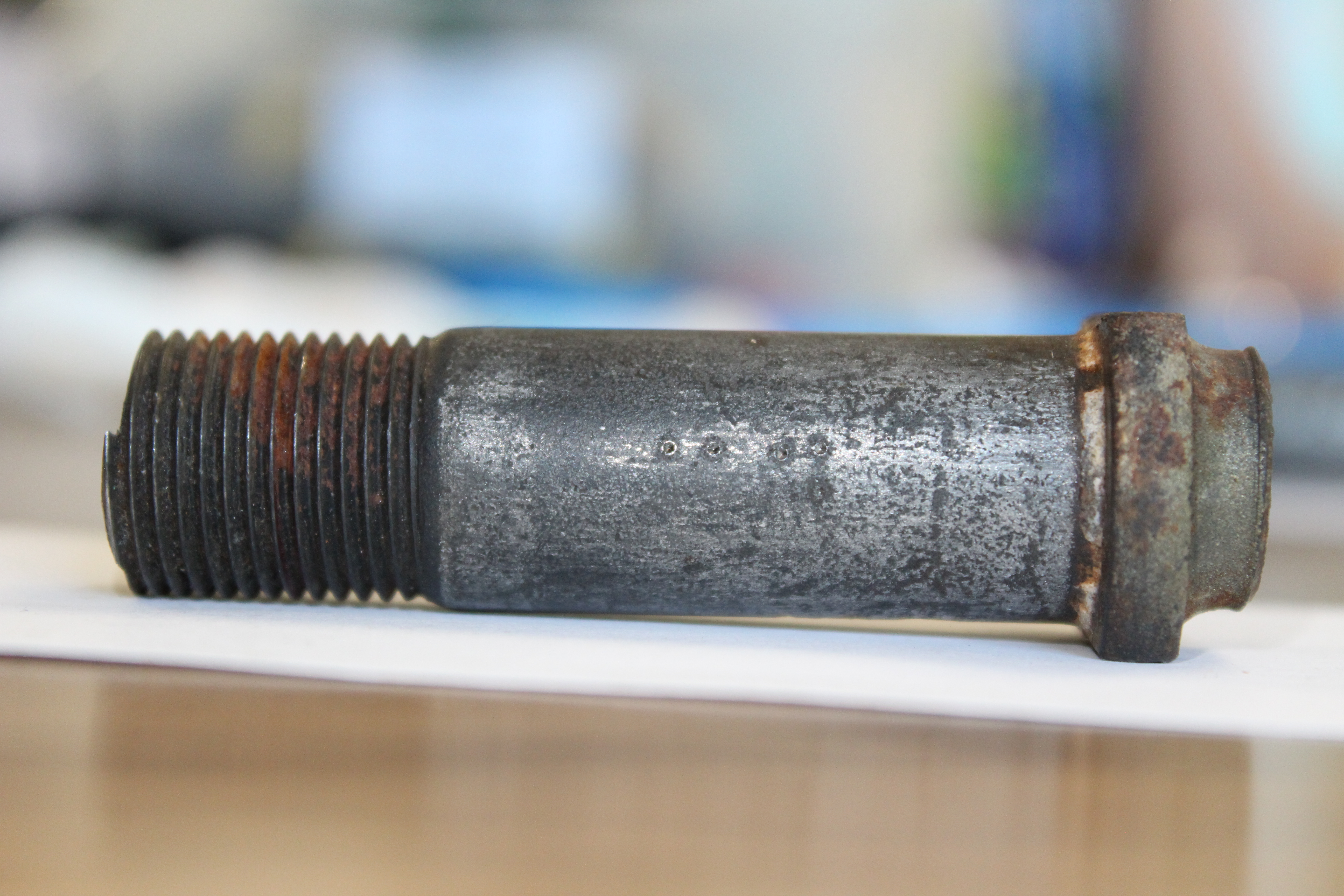

Broken Stud Sample
Threaded bolt with corrosion and wear patterns

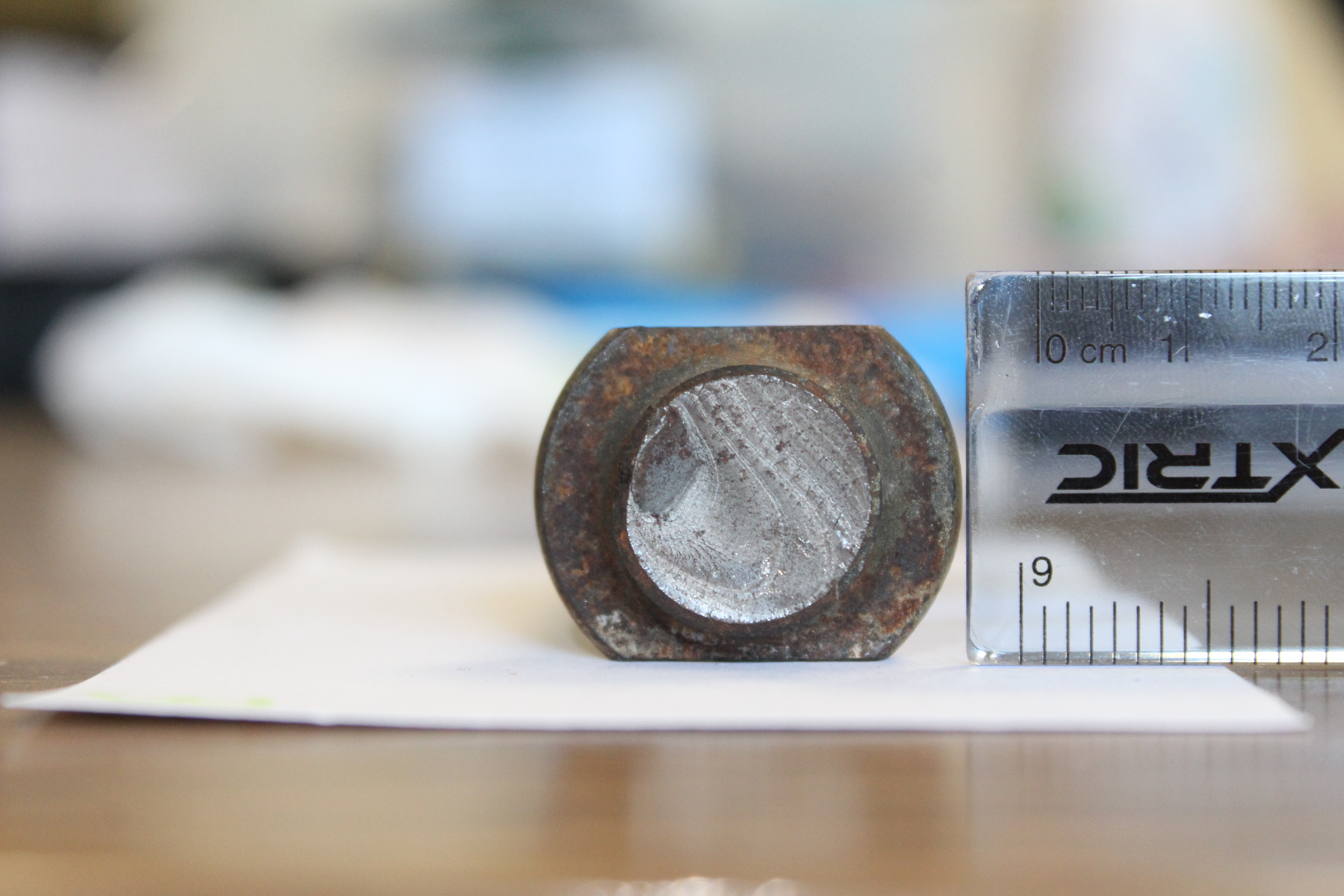

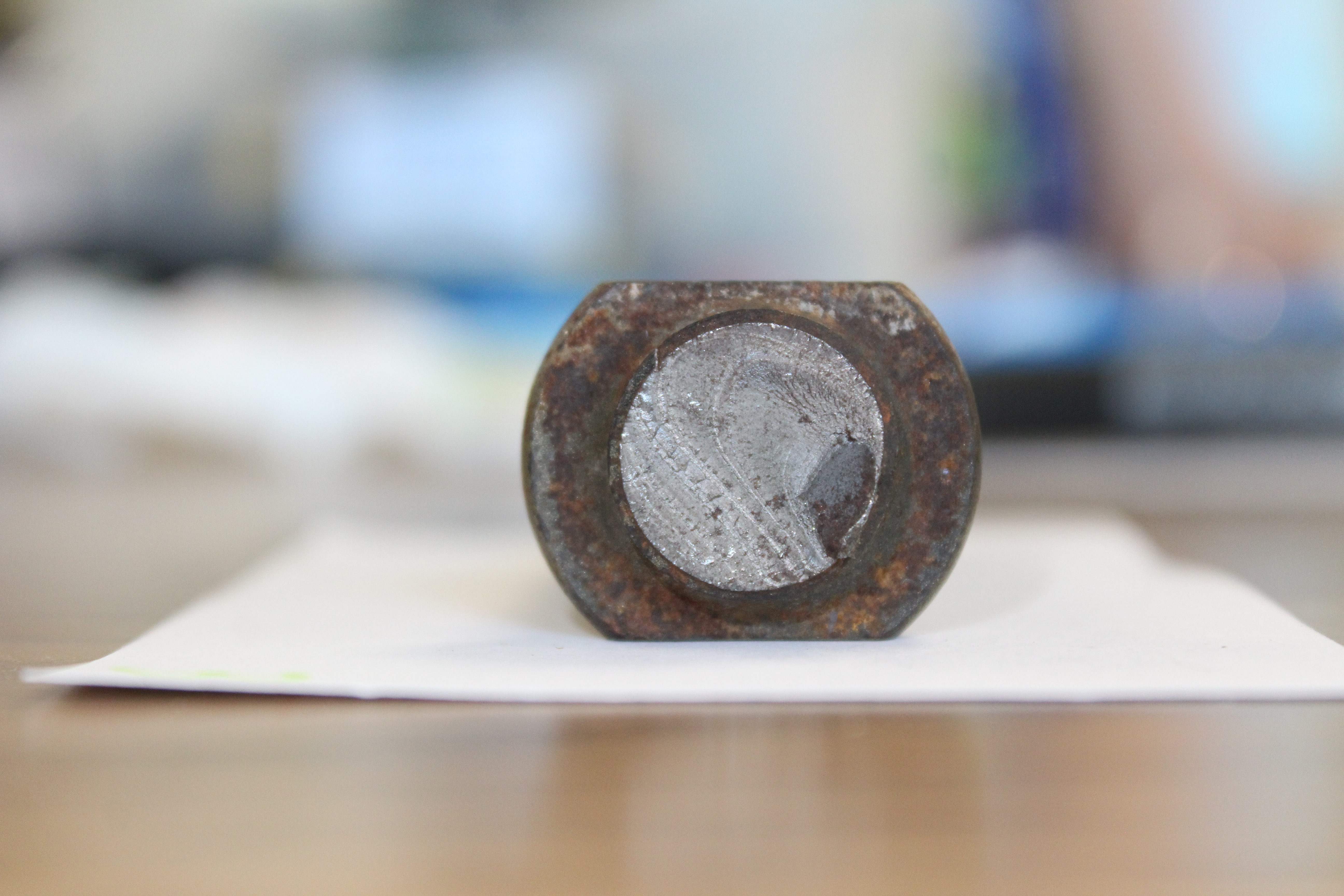

Cross Section View
Fractured end with machined surface reference
Material Analysis
Scale reference with millimeter measurements

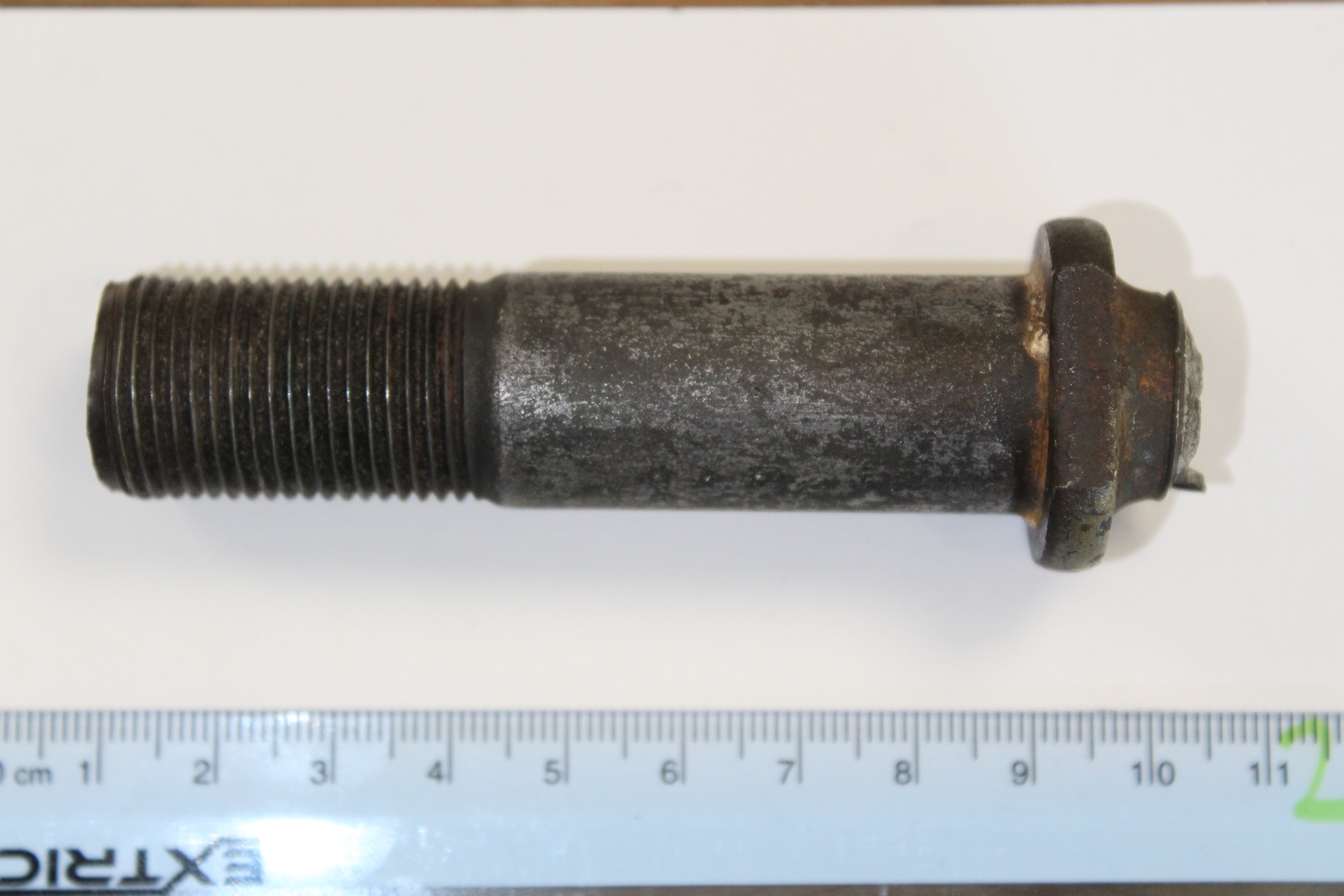

Detailed Analysis
Complete stud with threaded and smooth sections
Technical Discussion
Whiteboard with analysis notes and calculations
Research Documentation
Technical report with stress-strain curves
Presentation Materials
Schematic diagrams with colored annotations
3D Model Analysis
Computer visualization of fracture surface
Screw Top Analysis 1
Top view of bolt head with central hole
Screw Top Analysis 2
Cleaner top view with defined features
Screw Bottom Analysis 1
Bottom view showing fracture fragments

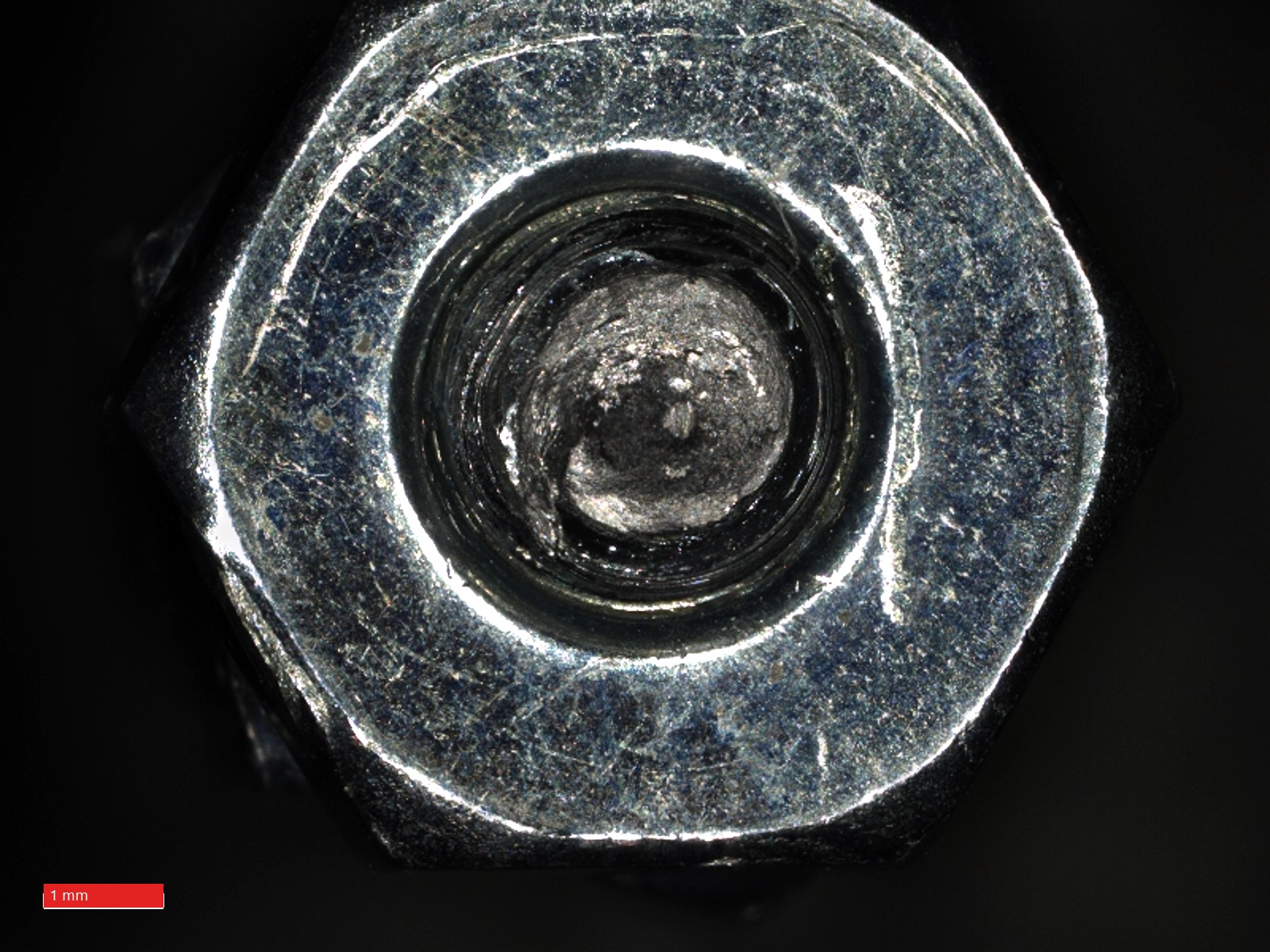

Screw Bottom Analysis 2
Hexagonal bolt head with fractured core

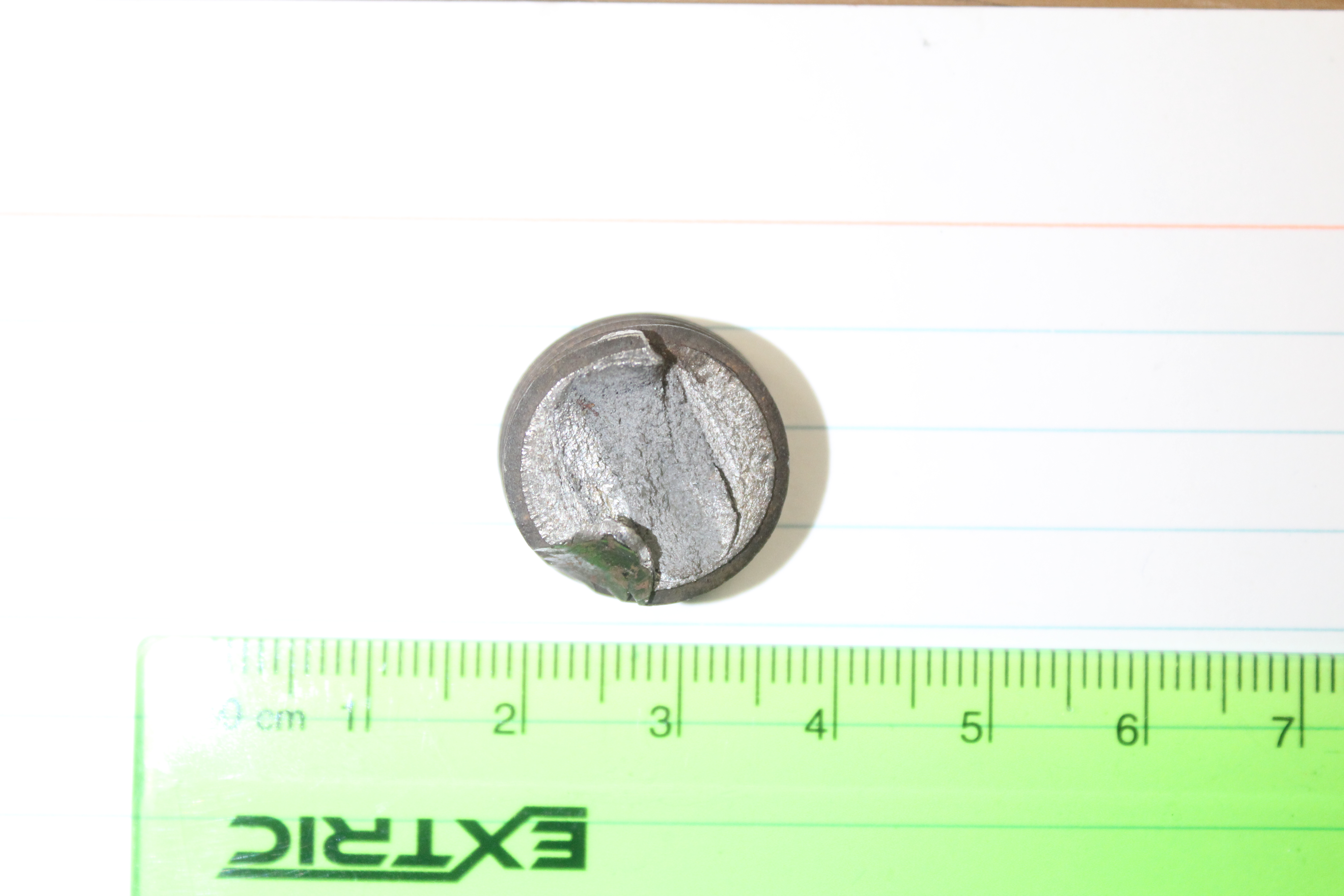

Scale Reference
Fracture fragment with millimeter scale
Project Presentation
Download the complete presentation slides from the ASM Failure Analysis project.
Download Presentation (PDF)
